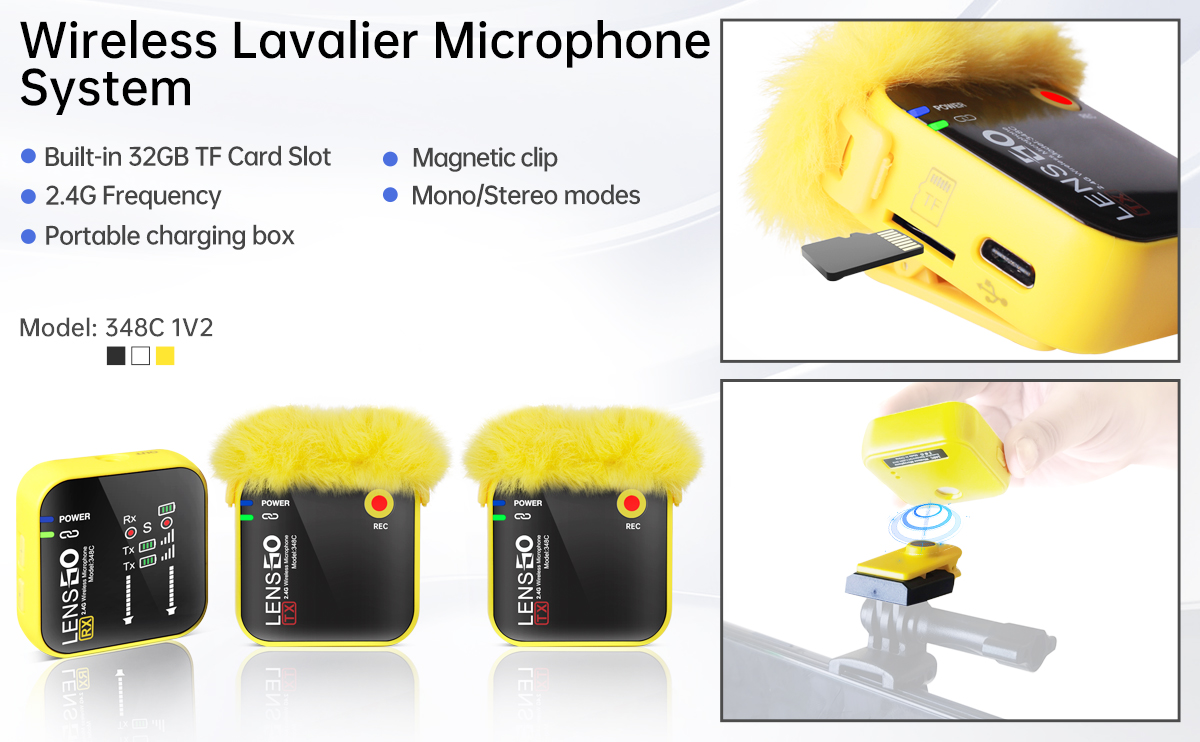

Camera Wireless Mic Lensgo348c Compact Digital Wireless Microphone System/Recorder With Extra Recording Button With Built in Magnet Clip (2.4 GHz, Yellow)

  • 【TF Card Record & One Click Recording】LENSGO LWM-348C lapel microphone with Built-in TF card slot, 32 GB Max Capacity. Record audio synchronously to prevent loss of recorded audio and save instantly. External REC recording button can realize one-key start/pause of the built-in card recording function.which can avoid some embarrassing situations effectively.

  • 【2.4GHz digital & Auto-Pairing】The wireless mic system broadcasts on the open 2.4Ghz global wireless frequency band that no interference no lag or signal loss, effective range reaches 229 feet, offers higher quality audio performance.It supports automatic connection between TX & RX after power on and easy operations if you need manual pairing.

  • 【Magnetic Clip System & Multiple Scene】The 348C wireless lavelier mic has a powerful magnetic clip that allows for easy positioning of a wireless transmitter on talent. Clothing can be sandwiched between the magnet and clip for total flexibility. It can even be used to place the mic discreetly on an object in a scene or on a stage to capture dialogue.

  • 【Noise Reduction & Mono/Stereo Output】With internal and external microphone two input modes Independent noise reduction algorithm, 7 levels of noise reduction for clear sound output.Specialized furry windshields are offered to minimize background noise. Boasts Mono/Stereo modes for choices, easy for post processing.

  • 【Long Work Time & TFT Real-time Monito】The TFT screen monitors the receiver data in real time. The built-in lithium battery 400mAh adopts TYPE-C charging interface/box charging, Independent charging box design combines charging and induction into one, convenient to carry and organize, charging time is 1.3 hours, 7 hours of long-lasting battery life. (TX recording can be used for 4 hours, separate TX uses 7 hours, RX uses 8 hours)


Buy now


Learn how to use: video tutorial


Features:

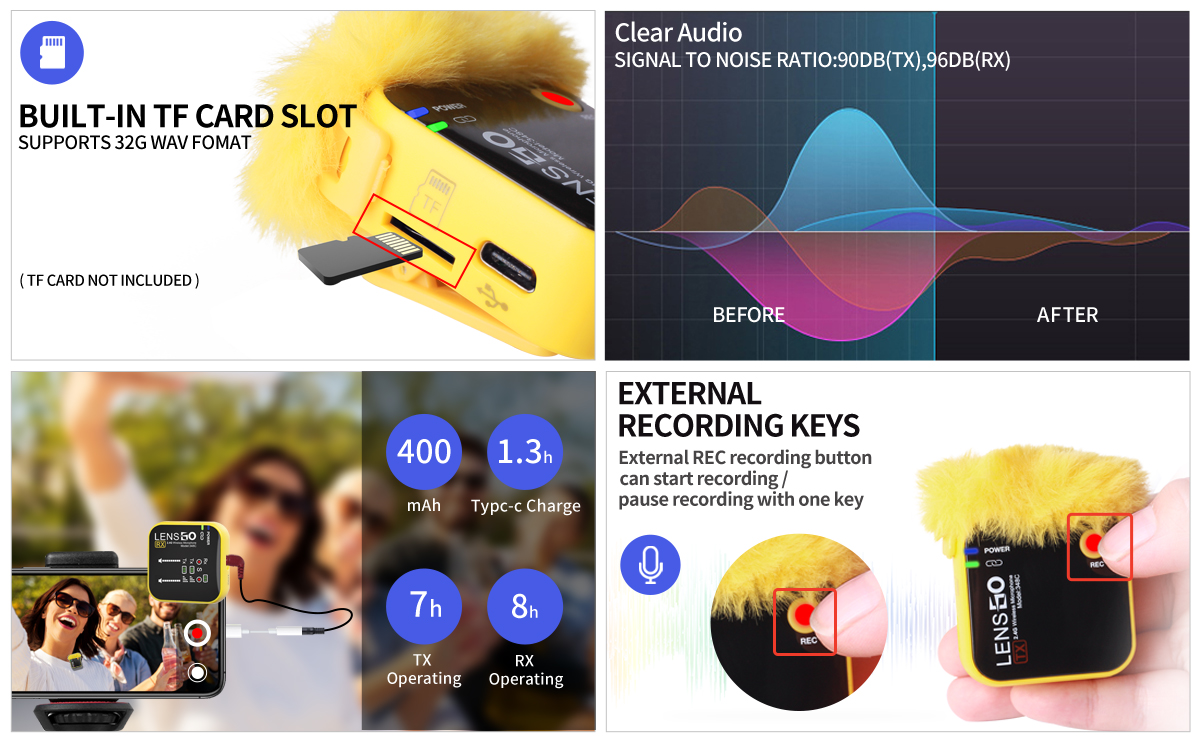

Built-in TF card slot to prevent missing recording.

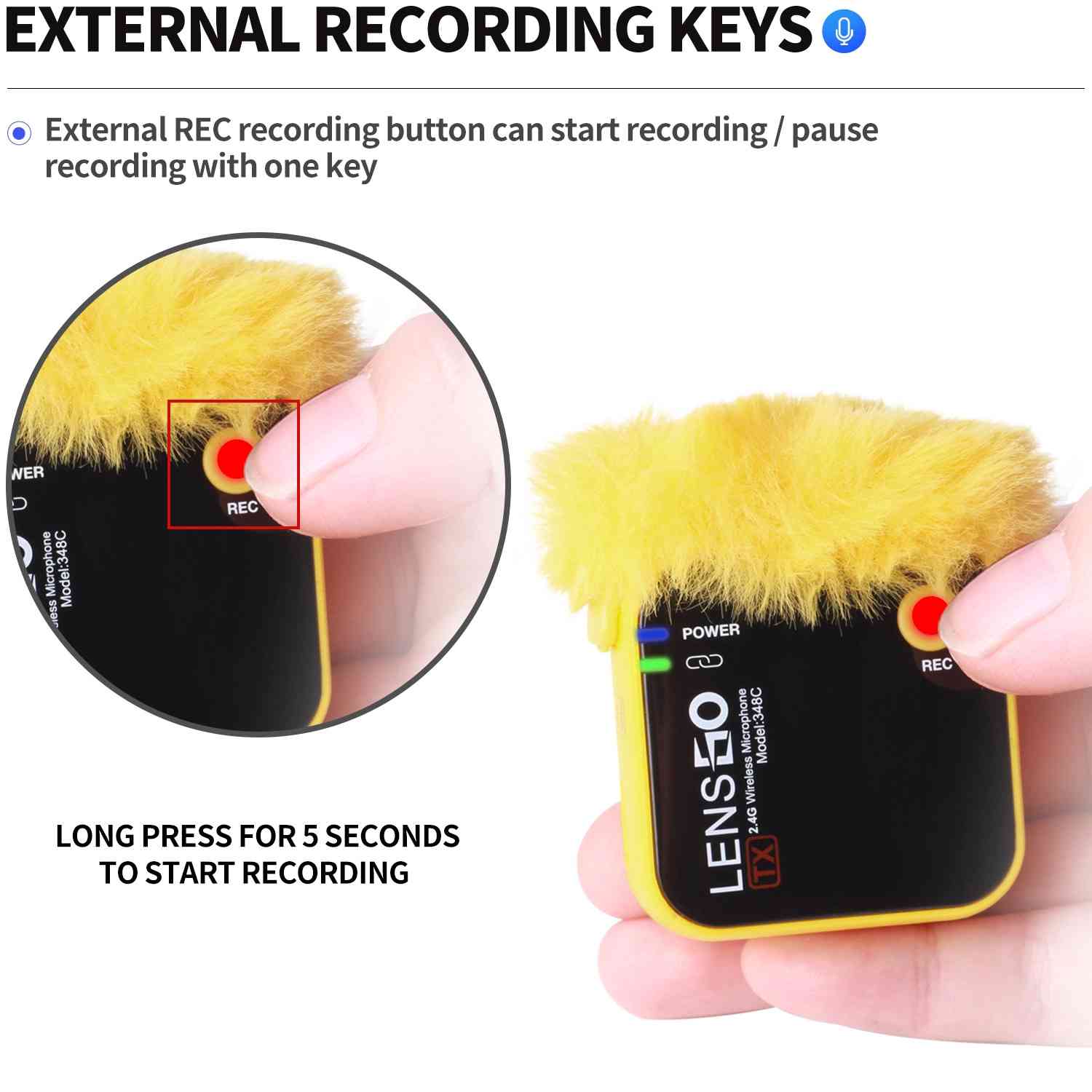

External REC recording button realize the function of one-key start/pause of card recording.

Magnetic clip, convenient disassembly and assembly.

Built-in lithium battery is charged with Portalble TYPE-C charging box.

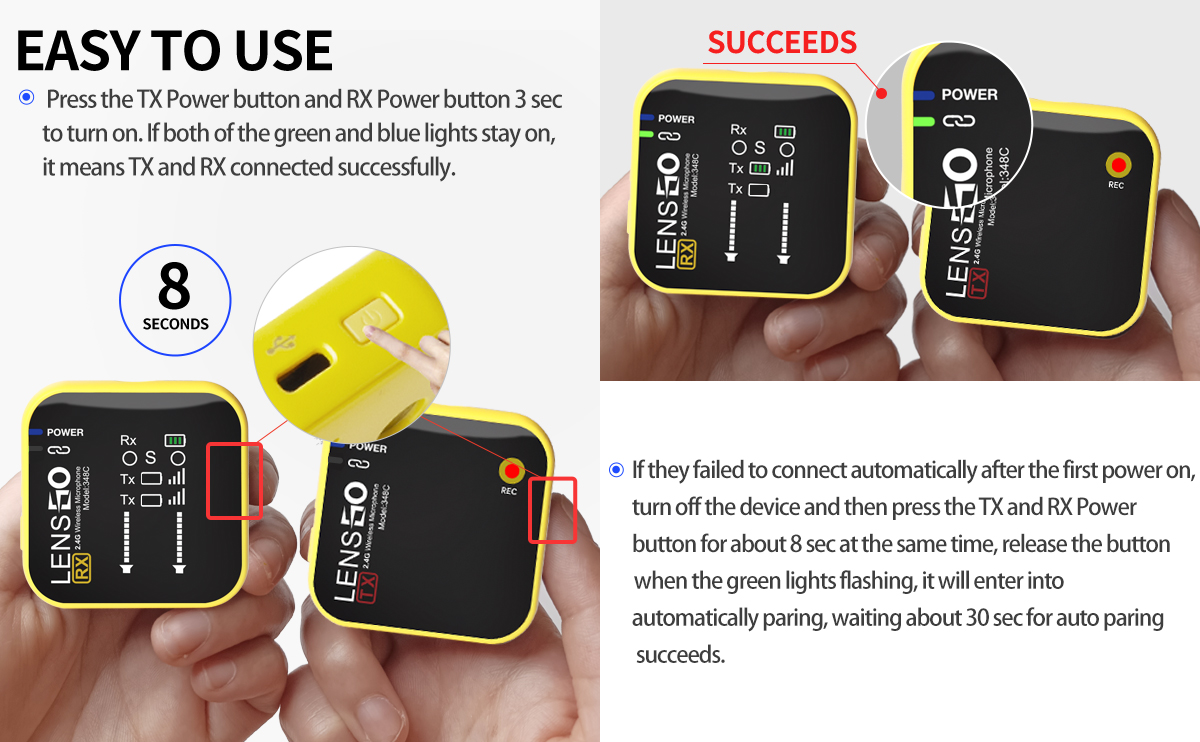

配对成功.jpgThis wireless lapel microphone supports automatic connection between Transmitter & Receiver after power on and easy operations if you need manual pairing.


Superior Audio Performance:

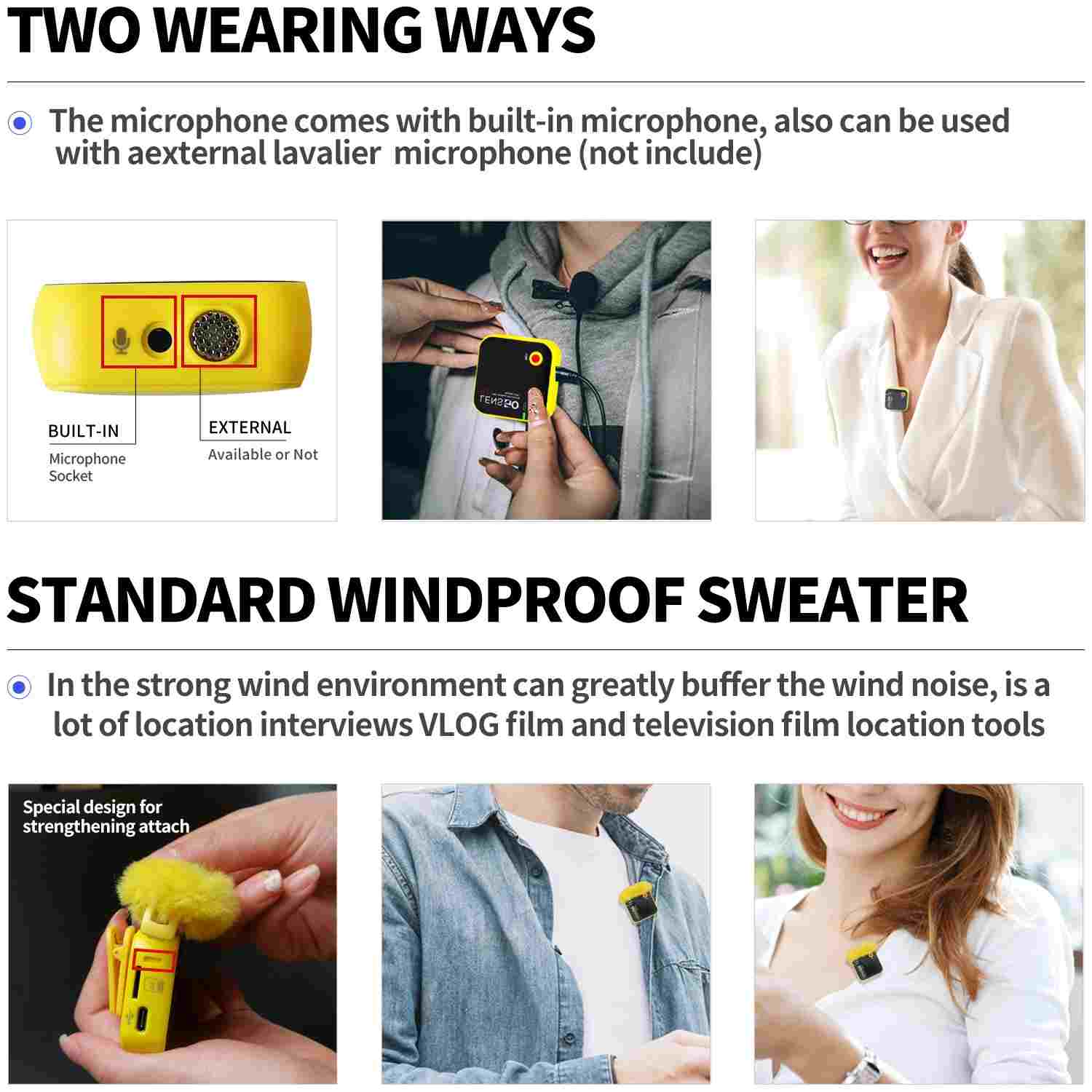

The Transmitter features an in-built omnidirectional microphone that delivers broadcast-grade audio and can also be used with any lavalier mic via the 3.5mm TRS input. The Receiver features a dual-purpose clip that can either clip onto clothes or a camera strap or slide securely into your camera’s cold shoe. Ultra-compact, super-lightweight and incredibly versatile.


2.4G wireless frequency, independent noise reduction algorithm, 7-level noise reduction.The operating range can reach 100 meters .The receiver adopts a TFT screen, which displays the power and signal of the receiver and transmitter. working status including recording mode, stereo and mono mode display.


The Transmitter features an in-built omnidirectional microphone that delivers broadcast-grade audio and can also be used with any lavalier mic via the 3.5mm TRS input. The Receiver features a dual-purpose clip that can either clip onto clothes or a camera strap or slide securely into your camera’s cold shoe. Ultra-compact, super-lightweight and incredibly versatile.

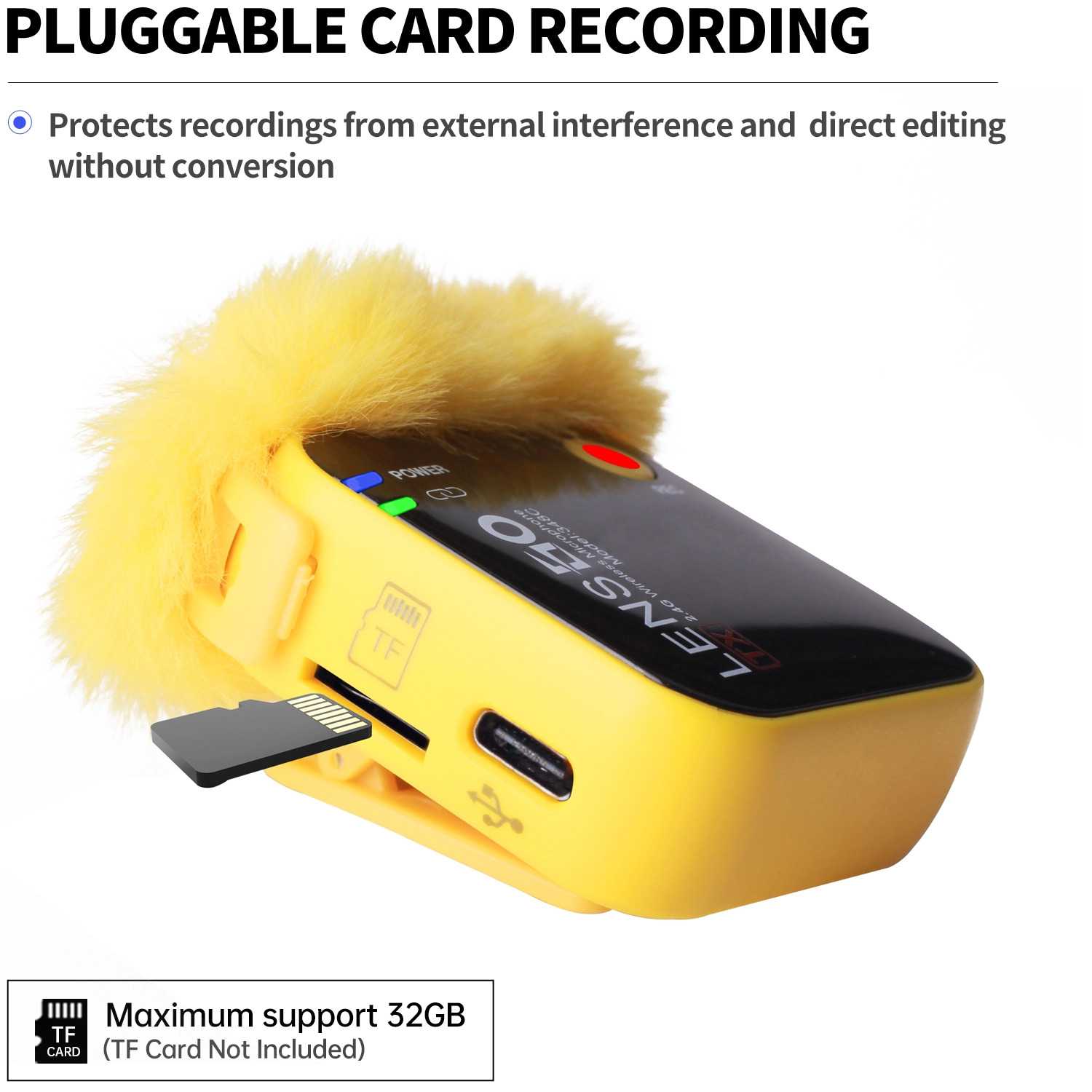

Memory Card Backup Wireless Lavilar Microphone:Double Insurance, One Key Start Record:Wireless signal interference cannot be completely avoided in daily shooting. It is number one killer that affects the stable transmission of microphone signals .built-in TF card slot which can insert 32GB memory card to back up the audio source, which solves the problem of signal interference and missing recording.


Wireless Microphone and Recarder:A extra "REC " recording button is added on the transmitter screen to start/stop recording backup. Turn on the recording function when shooting. When the audio source is disturbed by the signal,there is an abnormal sound or the sound is interrupted, you can directly export the TF backup audio file. The file does not need to be converted and can be directly edited and used.

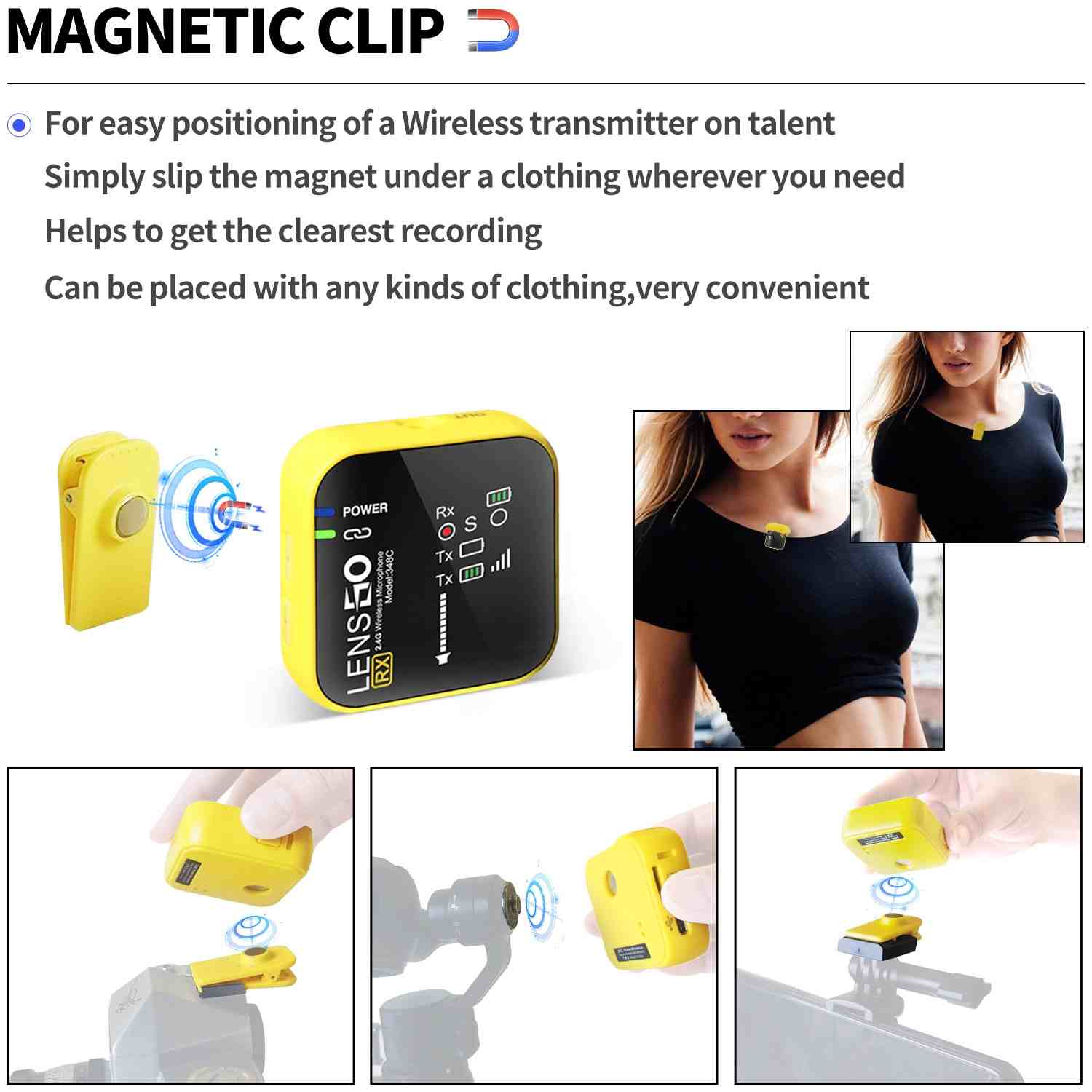

Magnet Cold Shoe Camera Wireless Microphone:we have metal paster,you can stick in recorder,tripod and smartphone,all in all any device you can’t install the wireless microphone,you can stick it.our magnet clip also can solve the headache problem that you don’t want microphone appears in the film,when you wear a black shirt,you can hide you microphone inside of your cloth,absorb the clip.shooting untroubled.

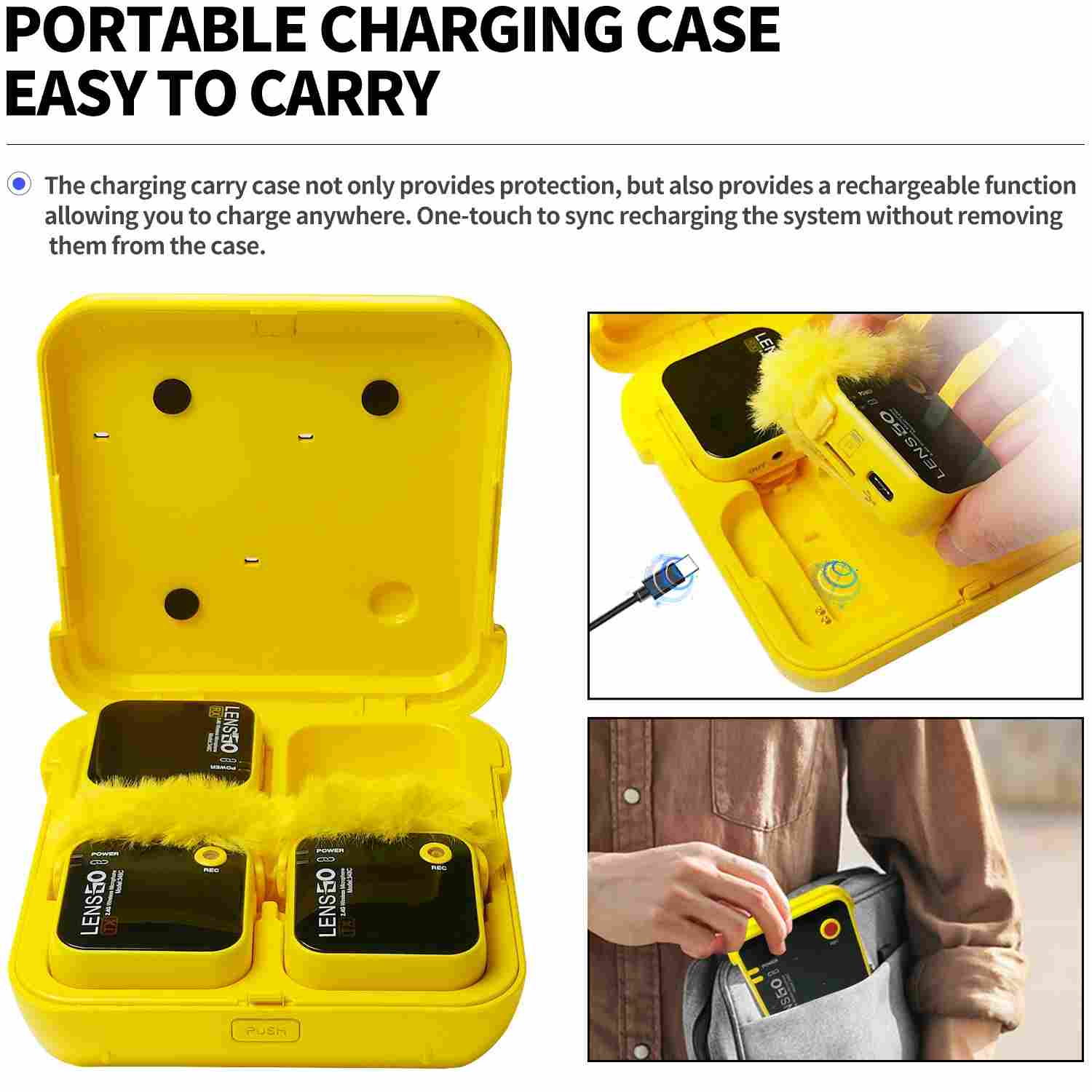

Portable Charging Box:Equipped with a portable outer packaging box,it is also a portable charging box, eliminating the cumbersome charging of 3 charging heads + 3 charging cables at the same time, only 1 charging head + 1 cable is needed. One charge three, more convenient and fast. The design of the outer packaging box is also unique,which looks like an oversized transmitter from a distance.




2.4GHz Digital Wireless Transmission System:2.4GHz digital wireless transmission with 128-bit encryption delivers crystal-clear audio under any conditions and excels in dense Wi-Fi and Bluetooth environments (shopping malls, conventions, hotels etc).

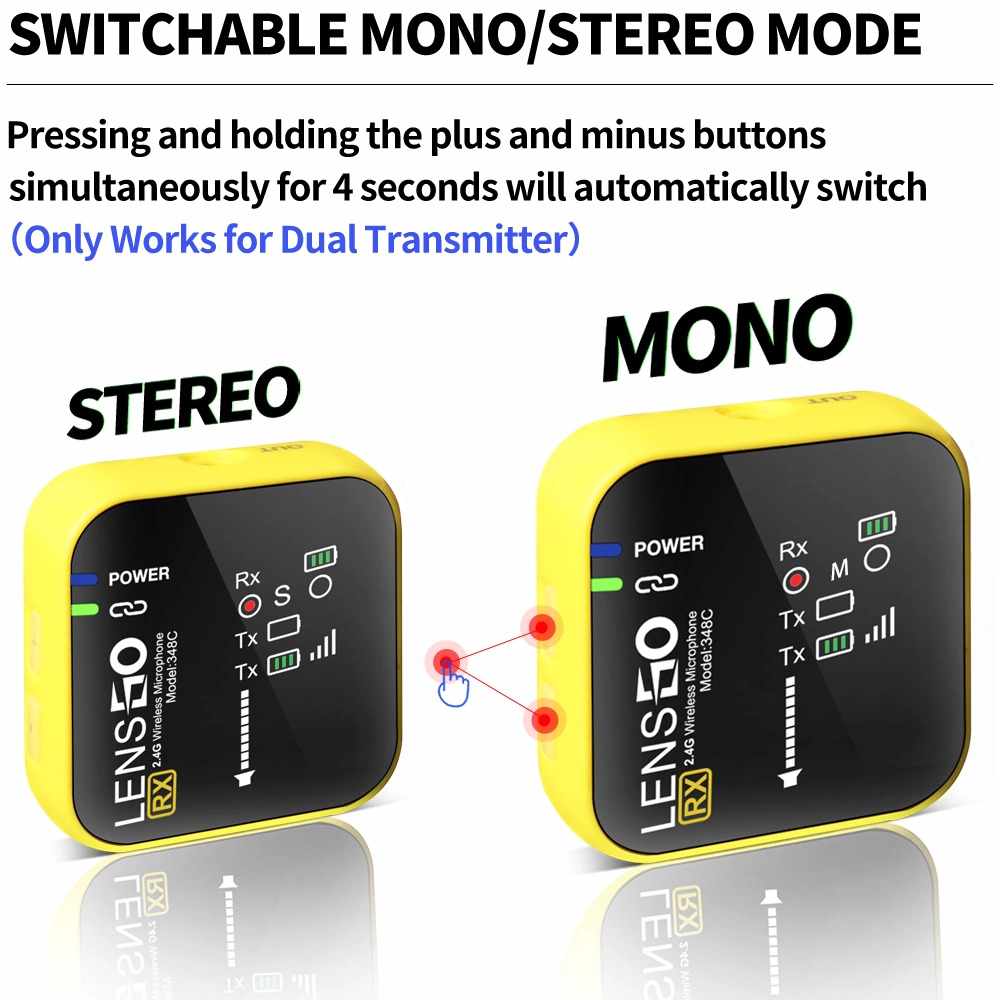

Mono/Stereo Output (Only works for 2 TX w/ 1RX):Boasts Mono/Stereo modes for choices, easy for post processing.With internal and external microphone two input modes Independent noise reduction algorithm, 7 levels of noise reduction for clear sound output.Specialized furry windshields are offered to minimize background noise.





Widely Use and Large Compatibility

Widely used for YouTube live stream, Vlog recording, interview, program hosting, podcast, presentation, church, wedding.etc...

Compatible with most of 3.5mm interface, Camcorder, Smartphone, SLR/DSLR, camera, Gopro, laptop, portable audio recorders, computers, and so on.


Specification

Specs

Polar Pattern
Omnidirectional
Transmission type

2.4GHz digital frequency agile system

Wireless Frequency570.0 MHz - 589.0 MHz
Working Distance100m(LOS),20m(NLOS)
Input Frequency Range48Hz-18KHz
Receving Sensitivity
-35dB(+/-3dB)/0dB=1vPa,1kHz
Delayed<20ms
RF Output Power8dbm
Signal/Noise78
Maximum SPL(Mic)100dB SPL
Maximum Input Level(3.5mm)
150mv
Microphone Preamp Gain
20db
Equivalent Noise Level(A-Weighted)
-95db
Audio Output Jack

1 x 1/8" /3.5mm TRS Line Out

1 x 1/8" /3.5mmTRS Headphone Output

Input
Built-in Mic/External Mic
Battery

Built-in 500mAh Rechargable Li-Battery(Mic-USB)

Working Time
7H
Charging Time
1.5H
Antenna
Spring Antenna
Operating Temperature

0°C to + 40°C

Storage Temperature
-20°C to + 55°C
Weight

40g(TX or RX)

Unit dimensions
48mm*48mm







FAQs


lensgo348c memory card recording version it is WAV version,177KBPS bite rate,the bigger number,the effect is better. lensgo338c & 328c is MP3 version.

You can put microphone in the charging box and charged by type-C,you also can charge microphone by type-C directly.When you put the microphone in the charging box,the red light shake means in the way of charging,when the products is fully charged.the red light is always on.indicating that the microphone is fully charged.

Yes,you no need to worry about lensgo348c signal issue,cause it is built-in memory card slot and with extra "REC" recording button,can realize a key to sart/stop card recording function.



Cause lensgo348c wireless microphone belong to wireless device,in the complex environment the signal will effected by other wireless system,the professional user they will buy a zoom recorder,in order to solve that problem we built-in the recorder to the microphone,in the simple environment,we will no need to open the function of recorder,so that we add extral"REC" button,let you one key start recorder if you want.




It will take 1.5H to charge the microphone ,and support you record the video for 7 Hours.

No,you can't plug out/plug in the memory card when power on,it will broken the memory card.

Nope,it just can support max 32GB card in NTFS. fat32 version.

The TX blue light flashes to indicate mute, the green light flashes to indicate signal pairing, and the red light flashes to indicate low power.

  1. You should check the connection mode is correct,the smartphone cable is black head+red head,black head connect with smartphone,red head connect with receiver output,camera cable is 2 red head.

  2. You need to check whether the transmitter is in mute state,click one time the power on/off button change the mute state and blue light flash.the screen have "mute"state you can see.

  3. Checking the transmitter screen whether have a volume dynamic.

  4. Checking whether the transmitter and receiver paring succussfuly.

The transmitter and receiver signal light indicate blue means paring successfully
